Sump Pumps vs. French Drains: Finding the Right Crawl Space Drainage Solution

Is water pooling under your house or making the air smell musty, and you want crawl space drainage options that fix it? A sump pump must sit at the lowest spot of the crawl space to remove standing water. We will compare sump pump and French drain systems, perimeter drains, vapor barriers, drainage pipe networks, and dehumidifiers to help you pick a plan. Keep reading to save your floors and air.

What Are Sump Pumps?

Sump pumps act like tiny lifeguards in your crawl space, springing into action when water sneaks in. From a trusty submersible sump pump to a battery backup system ready for storms, these machines help keep foundation drainage dry and safe.

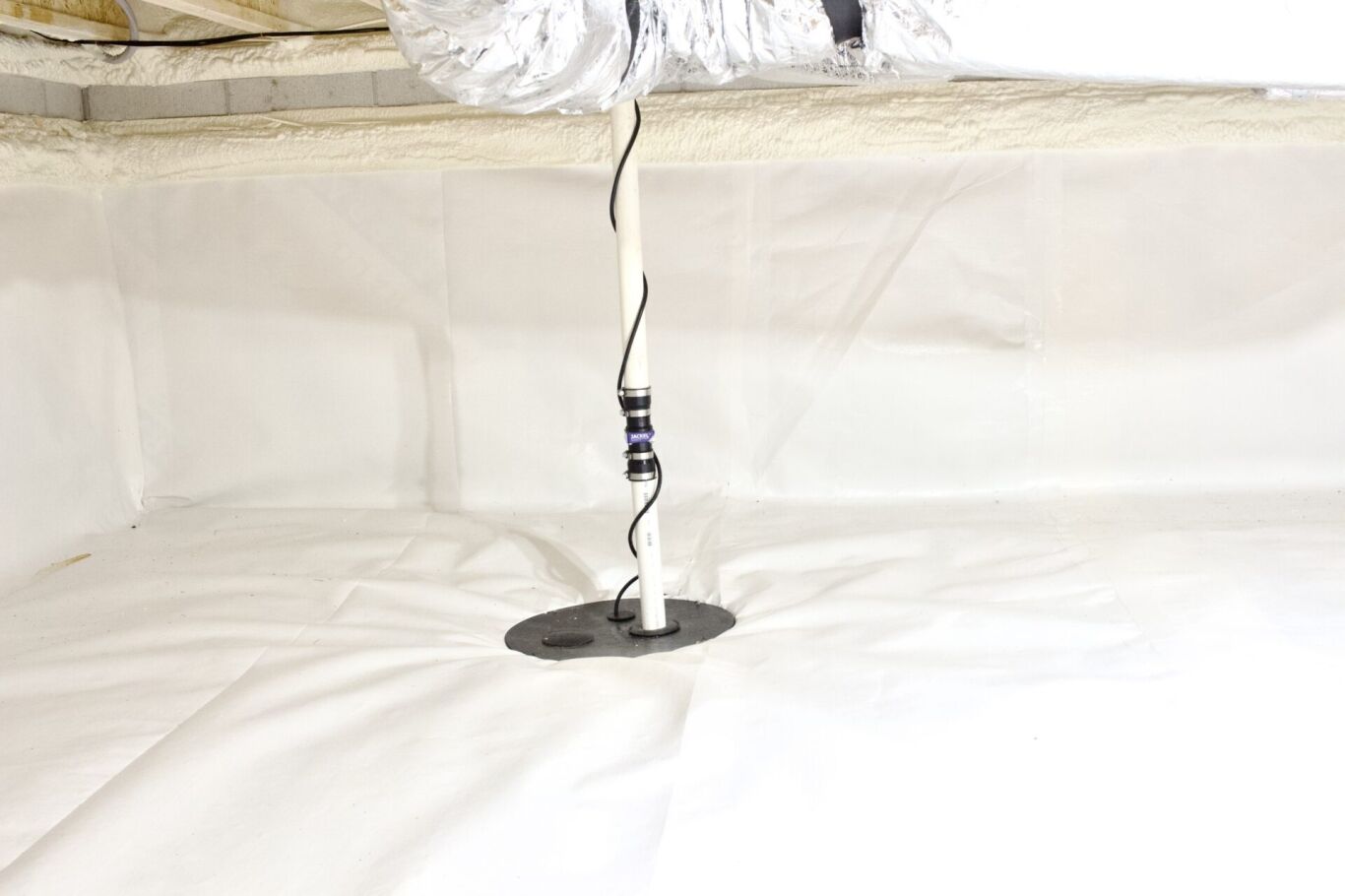

How Sump Pumps Work
A sump pump keeps crawl spaces dry by moving groundwater away from foundations.

To achieve this, a perforated pipe runs around the perimeter and collects groundwater, then directs it to a catch basin for removal. We dig a trench, install the drainage system, and set the basin at the crawl space low point. A submersible pump sits in the basin and pumps water out while using partially buried drainage pipes and drainage aggregate to carry water from the footing to the basin. A battery backup system pairs with the pump to keep it working during power outages, and some installations include a high water alarm. For large crawl spaces, multiple pumps can be installed to handle heavy flooding from rain, melting snow, or plumbing leaks. A check valve prevents water from flowing back into the basin after the pump stops, and a pump monitor watches over the system operation to protect motors from burnout and failure.

Alternative channeling options can also provide a path that ties into the main basin. Local codes may require a pump during crawl space encapsulation and vapor barrier installations, and our installers follow those rules precisely. Proper routing keeps discharged water away from the foundation to reduce foundation drainage problems and structural damage. Regular checks cut the chance of mold and moisture issues while protecting indoor air quality and energy efficiency. Integrating dehumidification, thermal insulation, and vapor barriers improves moisture management and helps with crawl space insulation. A working system lowers the risk of water damage, preserves structural integrity, and supports comprehensive foundation protection.

Key Features of Sump Pumps

Sump pumps have several key features that make them effective at keeping crawl spaces dry. They often use cast-iron construction, which enhances their durability and longevity. Many sump pumps integrate with perimeter drainage systems for enhanced moisture control, ensuring water moves efficiently away from your foundation.

These systems work well alongside vapor barriers and drainage matting to tackle moisture issues comprehensively. A battery backup system can keep the pump running during power outages, providing peace of mind even in tough weather conditions. Professional installation by our experienced team makes a big difference in performance and reliability. A good sump pump is like an insurance policy for your home’s health.

What Are French Drains?

French drains are a popular solution for managing groundwater. They guide water away from your foundation and prevent pooling in your crawl space.

How French Drains Work

French drains play a crucial role in managing crawl space water. They help redirect excess groundwater away from your home, preventing damage.

A perforated pipe sits in a trench around the perimeter of your foundation to collect water that seeps into the ground. The trench gets lined with filter fabric to keep soil out while allowing water to flow through freely. Gravel fills the trench above the pipe to aid in filtration and enhance water movement. Water travels through the pipe once it collects in the trench, and the system directs this water to a sump pump or discharges it far from your home. Proper depth and discharge location are vital for effective operation, becoming even more important if storm drains are absent.

French drains can be placed both inside and outside of crawl spaces, and this flexibility makes them a popular choice for various properties. For dirt crawl spaces, specialized drainage piping also collects surface and soil water efficiently to enhance drainage capabilities further. Well-installed systems can reach depths of about 2.5 feet with fabric-wrapped pipes and river rocks. These systems prevent unwanted water pooling against your foundation, safeguarding structural integrity and reducing mold risks as part of overall waterproofing strategies offered by DryTek Crawlspace Solutions.

Key Features of French Drains

French drains offer effective solutions for managing water in crawl spaces. These systems use perforated pipes buried in gravel to collect excess water, and the gravel covering allows for better filtration and stability of the soil. Filter fabric surrounds the pipes, preventing clogs while ensuring efficient drainage.

These systems can work alongside sump pumps for enhanced foundation protection, adapting easily to specific site conditions like soil type and groundwater issues. Professional-grade French drains meet high standards of durability and effectiveness, giving you peace of mind against signs of crawl space water damage.

Sump Pumps vs. French Drains: Key Differences

Sump pumps and French drains have different approaches to handling water issues. Sump pumps remove water with a mechanical pump system, while French drains redirect it naturally away from your home.

Installation Process

Installing a sump pump or a French drain requires careful planning. Each method has its specific steps to ensure effective drainage.

1. A trench must be dug for the French drain. This process involves removing soil down to the required depth, which can reach up to 2.5 feet.
2. Contractors lay a perforated pipe at the bottom of the trench. The pipe helps collect and direct water away from your crawl space.
3. Gravel is then poured over the pipe to encourage drainage. This layer also protects the pipe from clogging with dirt and debris.
4. Filter fabric covers the gravel layer; this prevents soil from entering the gravel while allowing water to pass through easily.
5. Installing a sump pump begins with placing a catch basin in the lowest part of your crawl space. This spot is crucial for effective water collection.
6. Pipes connect to the catch basin and carry water away from your home’s foundation. Proper connections are essential for preventing backups.
7. The installation often includes sealing vents; this practice keeps moisture and humidity levels in check.
8. Upgrading doors also enhances waterproofing efforts; it creates an extra barrier against outside moisture.
9. Professionals typically complete installations within one to two days, depending on how challenging the conditions are in your crawl space.

Proper installation ensures your system effectively manages excess water and protects against structural damage or mold growth.

Benefits of Proper Crawl Space Drainage

Proper crawl space drainage protects your home from damage. It keeps moisture at bay, which prevents mold and ensures a dry environment. This protection adds value to your property and enhances its livability. With reliable crawl space dehumidifiers, you tackle humidity head-on. Plus, with battery backup systems for sump pumps, you gain peace of mind even during storms. Good drainage means happier homes and healthier families!

Protecting Structural Integrity

Crawl space water intrusion can lead to severe structural damage. Wood rot, corrosion, and sagging floors may all occur if you don’t manage moisture properly. Foundation drain systems play a vital role in keeping your home safe by diverting water away from the base of your structure. A well-maintained drainage system helps preserve the integrity of your foundation.

Maintaining dry conditions in your crawl space also decreases long-term repair needs. If mold or excessive moisture takes hold, it increases risks for you down the line. Investing in professional-grade materials and high-quality dehumidification solutions offers lasting protection against these issues, supporting a healthy environment below ground level. Keeping those crawl spaces free from excess water is crucial for every homeowner looking to secure their property’s future.

Preventing Mold and Moisture Issues

Moist environments invite mold and mildew. Persistent musty odors and increased indoor humidity signal trouble in your crawl space. Sump pumps and French drains act as barriers against this menace, as keeping the area dry is key to stopping mold growth.

Using vapor barriers along with dehumidifiers provides maximum effectiveness. Encapsulation systems work well too, controlling both drainage and humidity. Regular maintenance also reduces pest infestations linked to damp conditions. A dependable waterproofing service from DryTek Crawlspace Solutions helps maintain a healthy environment, ensuring that your crawl space stays clean and safe from moisture issues.

Conclusion

Choosing between sump pumps and French drains can be tricky. Both offer solid solutions for crawl space drainage issues. Sump pumps work best in low points, swiftly removing water. French drains shine with their perimeter design, guiding water away from the house. Evaluate your unique needs to protect your home from moisture, because a little effort now saves big problems later on!
